商品屬性

產地中國

品牌康鈺

型號便攜式

藥（械）準字蘇鎮械備20170016號

貨號便攜式B超

款式標配3.5Mhz凸探頭1個,需配其他探頭咨詢客服

主要下游平臺ebay,亞馬遜,wish,速賣通,LAZADA

主要銷售地區非洲,東南亞,中東

是否跨境出口專供貨源是

是否專利貨源否

視頻展示

商品描述

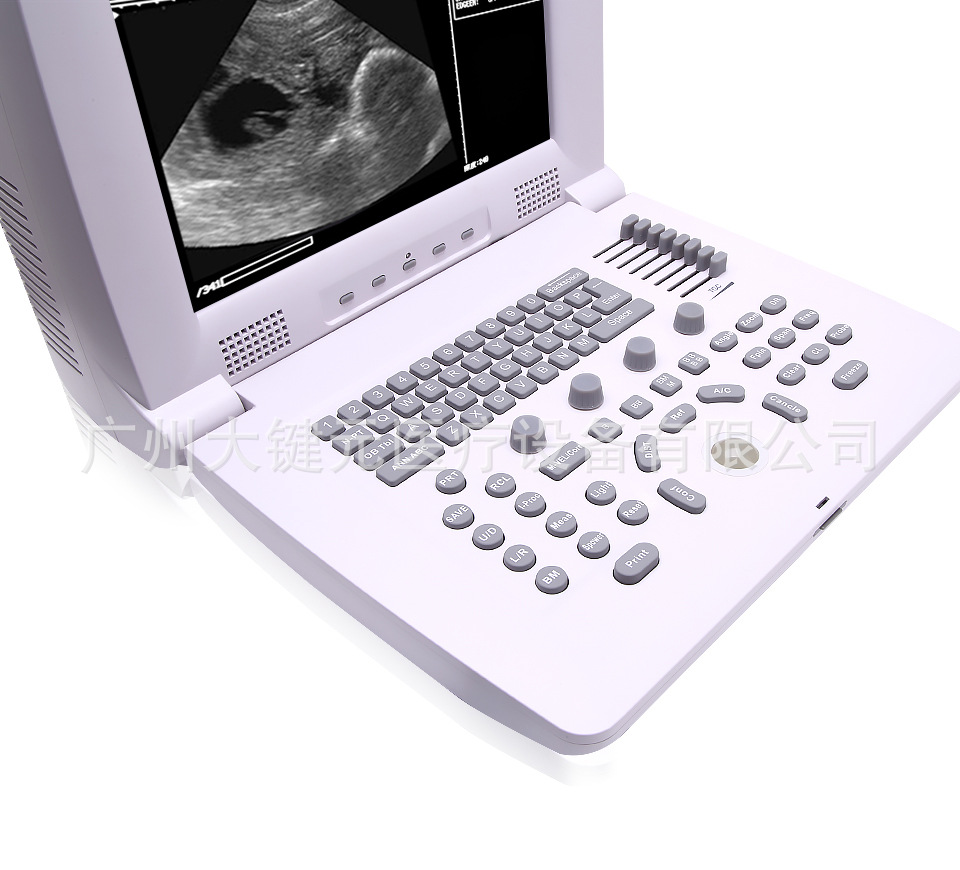

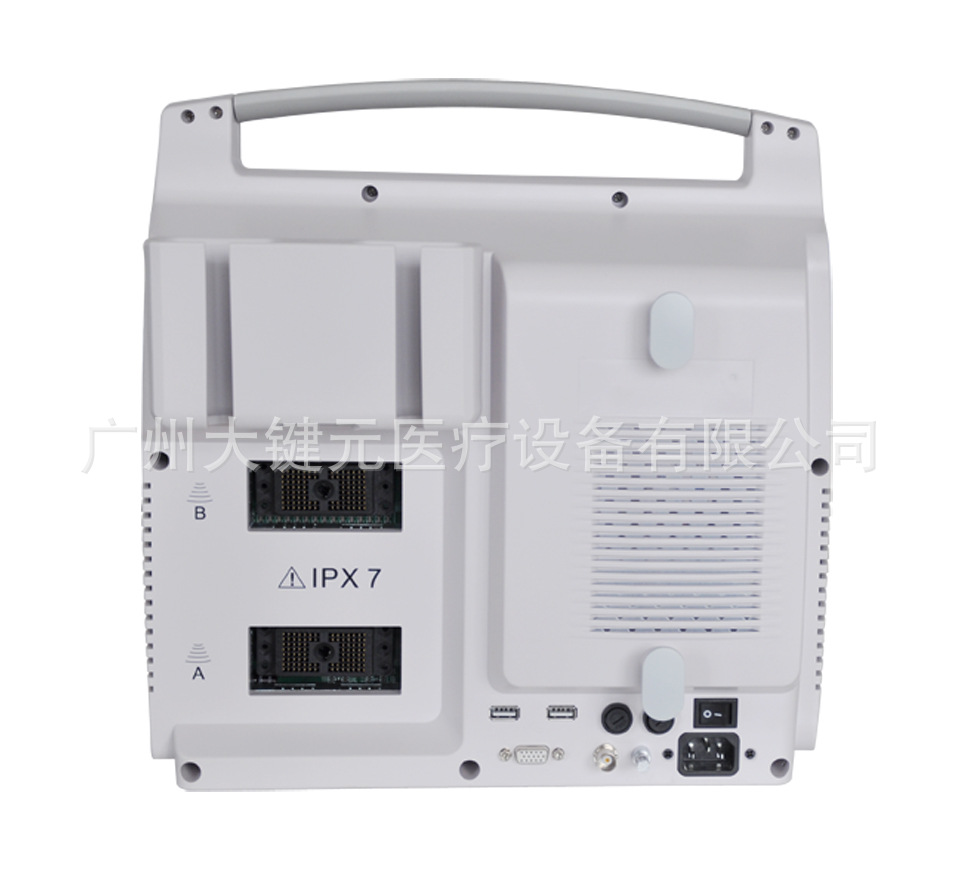

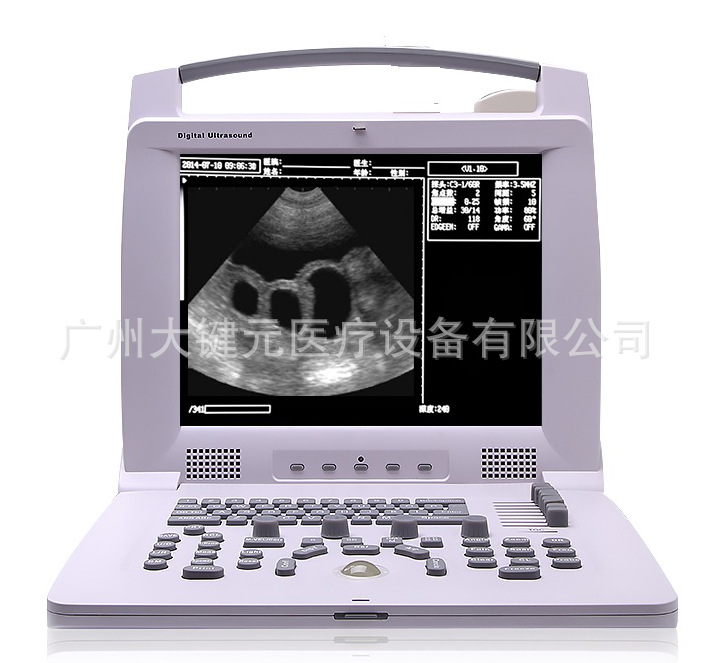

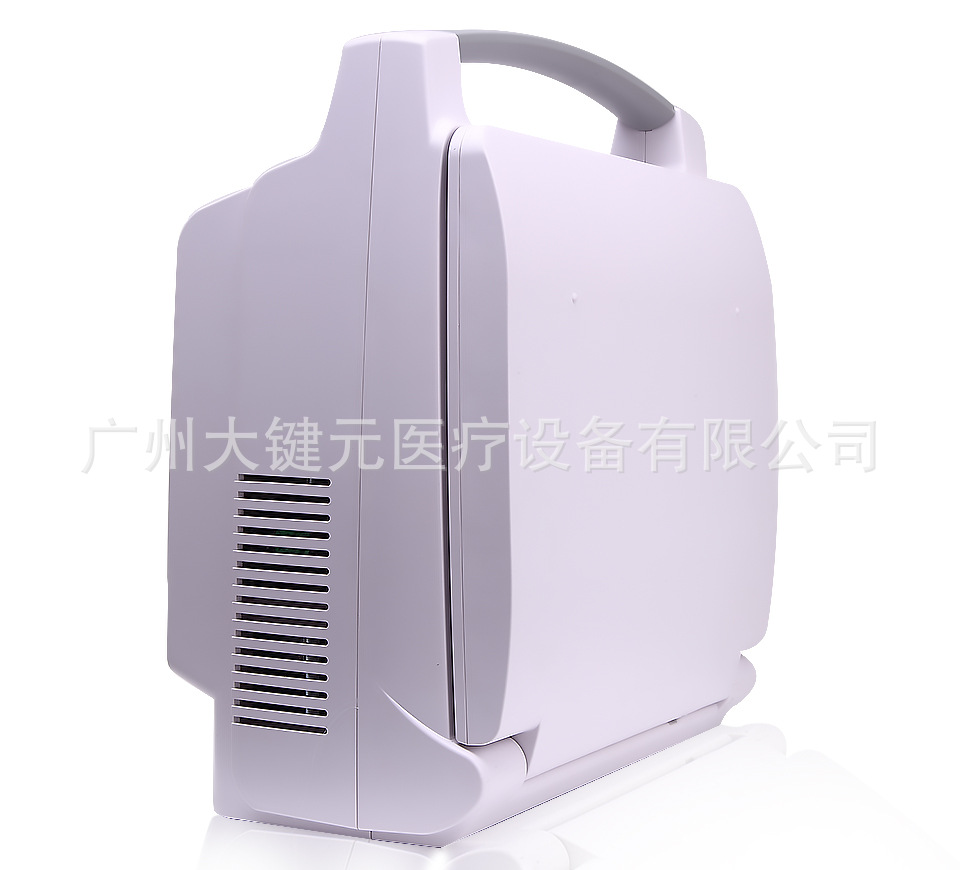

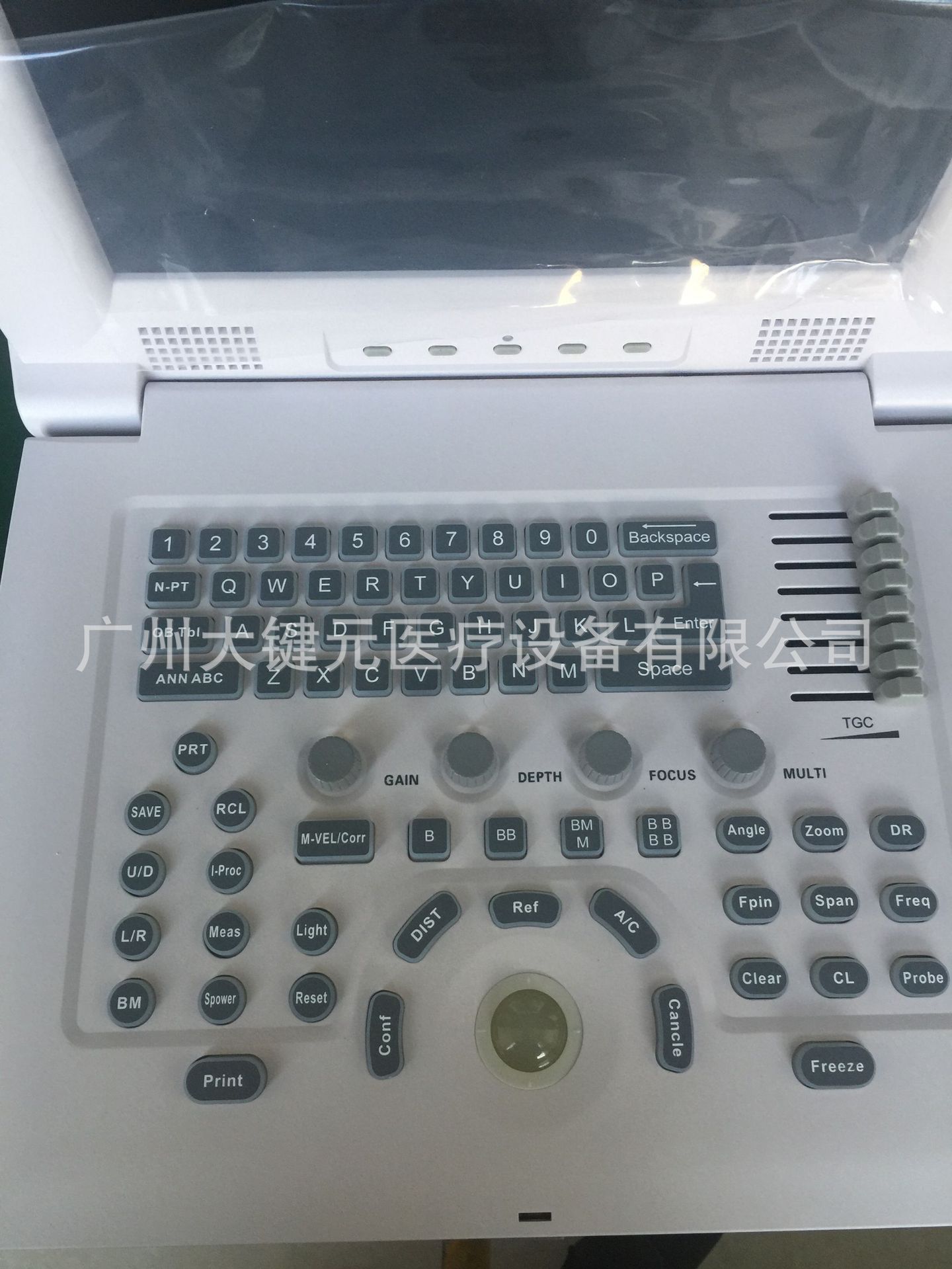

Veterinary Portable Ultrasound Scanner

Applications:
Ovine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Specifications:

Probe frequency: 2.5Mhz-8.5Mhz
Displayed Depth(mm): 240(max.), 16 levels adjustable
Detect depth(mm): ≥60
Resolution(mm): Lateral, ≤2（depth≤80）, ≤3（80＜depth≤130）; Axial, ≤2（depth≤80）, ≤3（80＜depth≤130）
Blind zone(mm): ≤7
Geometric position precision: Horizontal≤15; Vertical≤10
Monitor size: 12 inch
Display mode: B, B+B, B+M, M, 4B
Image storage: 32
Image gray scale: 256
Scan depth: 40mm-240mm
Cine loop: 809 frame (max.)
Posture mark: ≥40
Dynamic range: 100dB-130dB
Image flip: up/down, right/left, black/white
Scan angle: adjustable
Focus position: adjustable
Focal space: 5 level
Measurement: distance, circumference, area, volume, heart rate, gestation age, EDD
Notation: date, time, name, sex, age, full screen words edit and etc.
Output report: 2 type
Output: PALD, NTSC

Machine dimension (mm): 320*165*290
N.W: 6KG


Standard Configuration:

. Scanner Body: 1pc
. 3.5MHz Convex Probe: 1pc
. Charger with a Set of Wires: 1set
. Bottle of USG gel: 1pc
. User Manual: 1pc

Optional:
. 7.5MHz Linear Probe
. 5.0MHz Micro-convex Probe
. Video Printer

. Trolley
